Reduce Head Knurled Rivet Nuts
Reduce Head Knurled Rivet Nuts are a type of blind rivet nut that features a reduced head design. This means that the head of the rivet nut is smaller in diameter compared to standard rivet nuts, making them ideal for applications where space is limited or where a flush finish is desired. The knurled exterior of the rivet nut provides additional grip and prevents rotation during installation, ensuring a secure fit.
Product Description

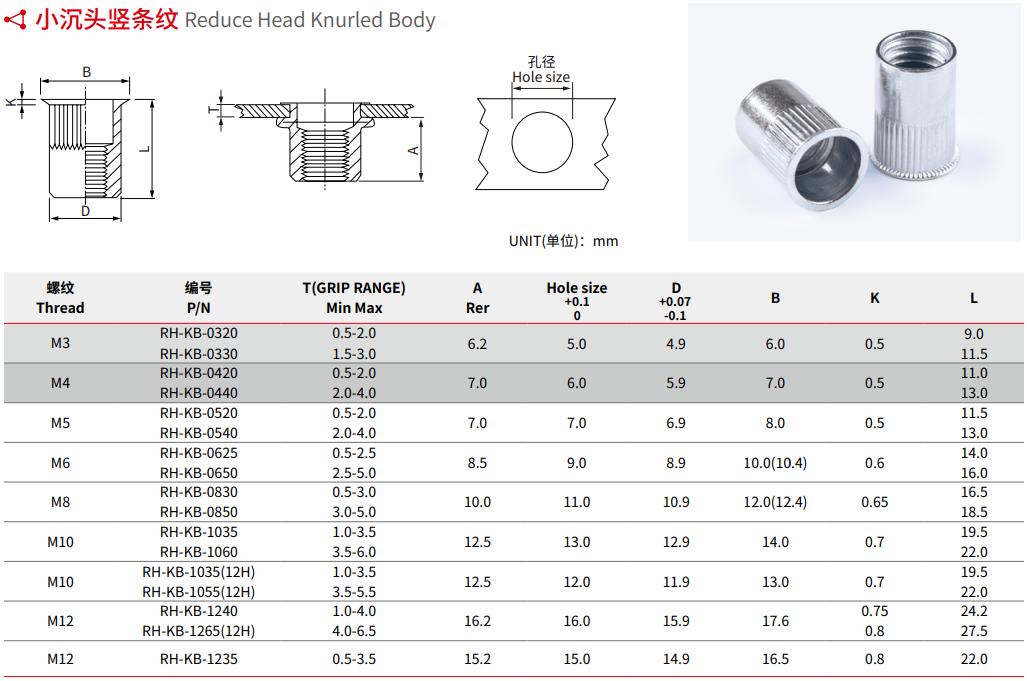

Specification of Reduce Head Knurled Rivet Nuts:
| UNIT: mm | |||||||
| Thread | T(GRIP RANGE) MIN MAX |
A Ref |
Hole Size +0.10 | D +0.07 -0.1 |
B | K | L |
| M3 | 0.5-2.0 | 6.2 | 5.0 | 4.9 | 6.0 | 0.5 | 9.0 |
| 1.5-3.0 | 11.5 | ||||||
| M4 | 0.5-2.0 | 7.0 | 6.0 | 5.9 | 7.0 | 0.5 | 11.0 |
| 2.0-4.0 | 13.0 | ||||||
| M5 | 0.5-2.0 | 7.0 | 7.0 | 6.9 | 8.0 | 0.5 | 11.5 |
| 2.0-4.0 | 13.0 | ||||||
| M6 | 0.5-2.5 | 8.5 | 9.0 | 8.9 | 10.0(10.4) | 0.6 | 14.0 |
| 2.5-5.0 | 16.0 | ||||||
| M8 | 0.5-3.0 | 10 | 11.0 | 10.9 | 12.0(12.4) | 0.65 | 16.5 |
| 3.0-5.0 | 18.5 | ||||||
| M10 | 1.0-3.5 | 12.5 | 13.0 | 12..9 | 14.0 | 0.7 | 19.5 |
| 3.5-6.0 | 22.0 | ||||||
| M10 | 1.0-3.5 | 12.5 | 12.0 | 11.9 | 13.0 | 0.7 | 19.5 |
| 3.5-5.5 | 1.6 | 22.0 | |||||
| M12 | 1.0-4.0 | 16.2 | 16.0 | 15.9 | 17.6 | 0.75 | 24.2 |
| 4.0-6.5 | 0.8 | 27.5 | |||||
| M12 | 0.5-3.5 | 15.2 | 15.0 | 14.9 | 16.5 | 0.8 | 22.0 |
Payment Terms: L/C, T/T
Packaging & Shipping
- Packaging: Plastic woven bag, plastic box, carton or according to customer requirements
- Shipping: Container shipping
- Port of Loading: Ningbo/Shanghai
Features of Reduce Head Knurled Rivet Nuts:
Reduce Head Knurled Rivet Nuts are an essential component in modern manufacturing and assembly processes. Their unique design features, including a smaller head and knurled surface, make them ideal for a variety of applications where space is at a premium, and a secure connection is paramount.
- Reduced Head Size: The smaller head allows for installation in tighter spaces, making them perfect for applications where traditional rivet nuts may not fit.
- Knurled Design: The knurled surface enhances grip, providing a more secure hold in the material. This feature is particularly beneficial when working with softer materials that may not hold standard fasteners well.
- Material Variety: Reduce Head Knurled Rivet Nuts are available in various materials, including aluminum, steel, and stainless steel. This variety allows for selection based on the specific requirements of strength, corrosion resistance, and weight.
- Easy Installation: These rivet nuts can be installed using simple hand tools or pneumatic tools, making them accessible for both professional and DIY applications.
- Versatile Applications: They can be used in a wide range of settings, from automotive assembly to electronic enclosures, providing a strong threaded insert for attaching components securely.
Application of Reduce Head Knurled Rivet Nuts:
Reduce Head Knurled Rivet Nuts are used in numerous applications, including:
- Automotive Industry: Used for securing body panels, trim pieces, and other components where a low-profile fastener is required.
- Aerospace: Ideal for lightweight constructions where reducing weight is crucial without compromising strength.
- Electronics: Commonly used in electronic enclosures, allowing for secure mounting of circuit boards and other components.
- Furniture Manufacturing: Employed in assembling furniture pieces where a clean, finished look is desired.
Advantages of Reduce Head Knurled Rivet Nuts:
The advantages of using Reduce Head Knurled Rivet Nuts include:
- Space Efficiency: Their reduced head size allows for use in confined spaces, making them suitable for various designs and layouts.
- Enhanced Stability: The knurled surface ensures that the rivet nut remains in place during installation and use, providing long-lasting stability.
- Cost-Effective: With their ease of installation and reliability, they can reduce labor costs and improve overall productivity in manufacturing processes.
