Shear Stud With Ceramic Ring
Shear studs with ceramic rings are specialized construction components used primarily in the field of structural engineering and civil construction. These innovative fasteners combine the benefits of traditional shear studs with the added advantages of ceramic materials, providing enhanced performance in various applications. In this article, we will explore what shear studs with ceramic rings are, their applications, benefits, and how they contribute to modern construction practices.
Product Description

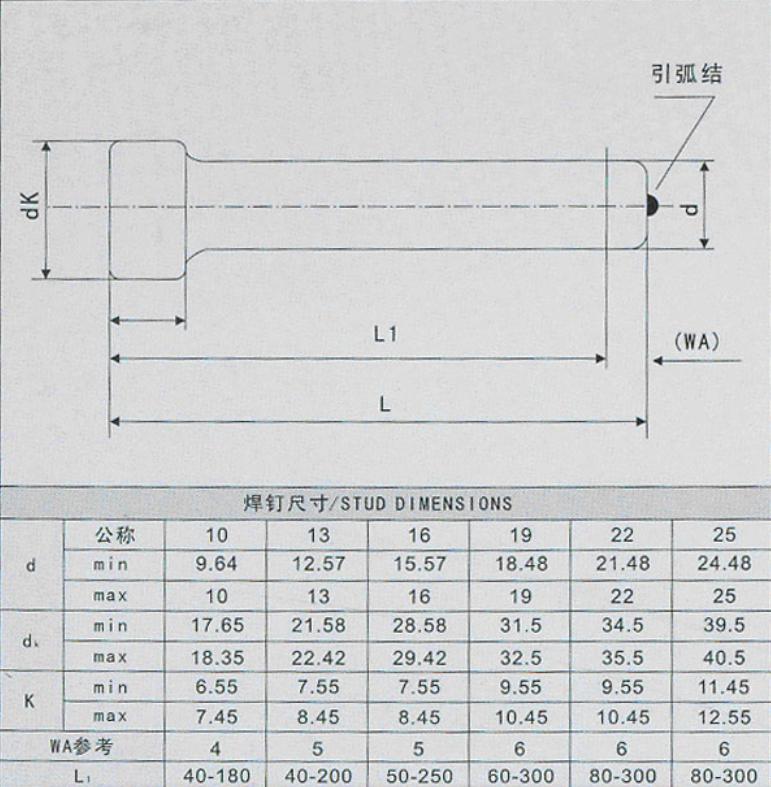

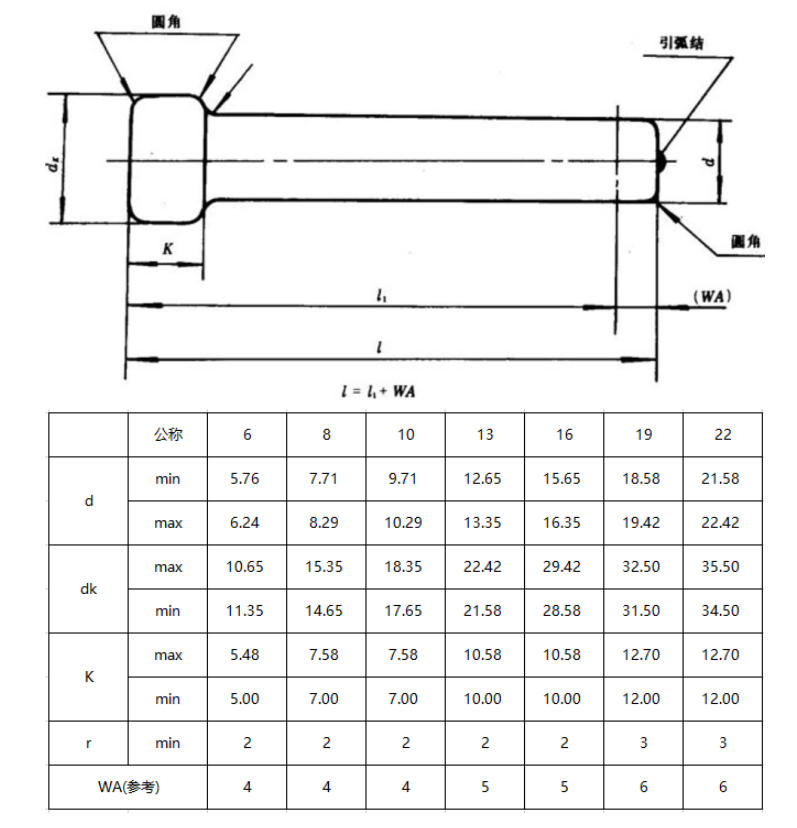

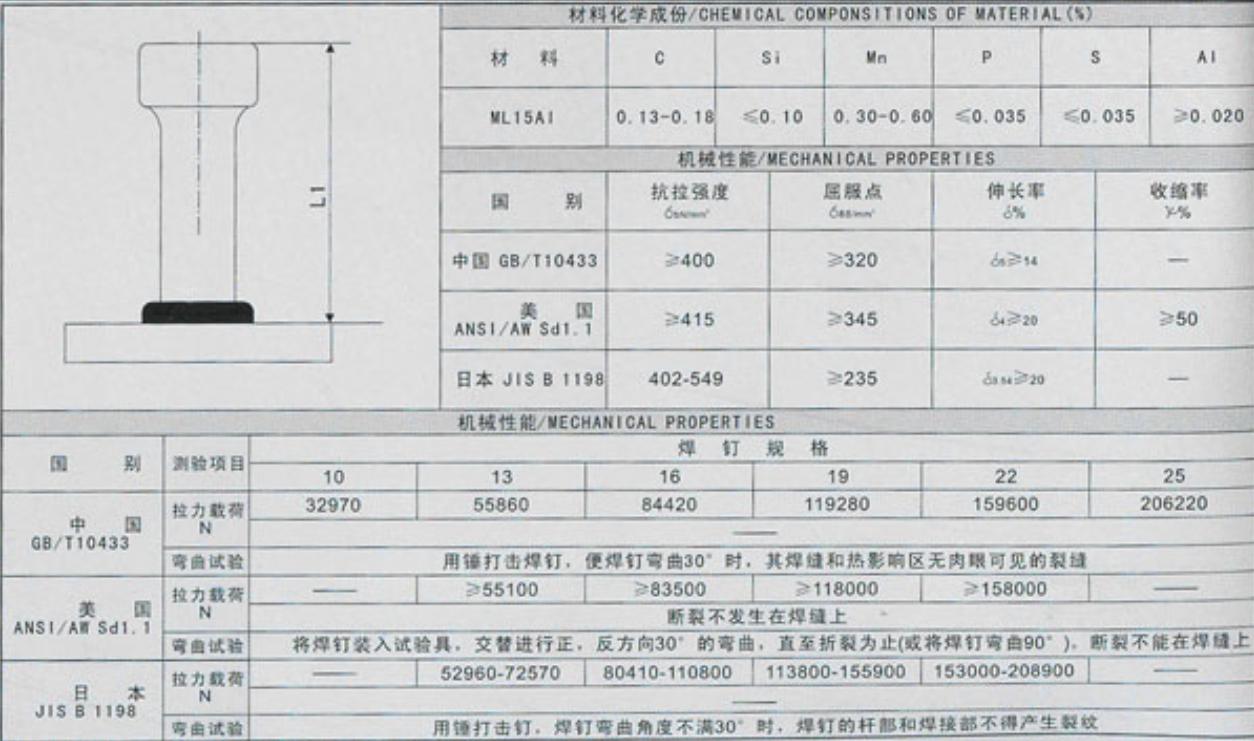

Specification of Shear Stud with Ceramic Ring:
- Stud Material: Carbon steel, alloy steel, or stainless steel
- Grade:4.8, 6.8, 8.8, or as required
- Surface treatment: Zinc plating, passivation, or other anti-corrosion coatings
- Diamter:10-25mm
- Length:50-300mm or according to requirements
- Standard: ISO 13918, GB/T 10433-2002, AWS D1.1, JIS B1198, BS5400
Payment Terms: L/C,T/T
Packaging & Shipping
- Packaging: Plastic woven bag, carton or according to customer requirements
- Shipping: Container shipping
- Port of Loading: Ningbo/Shanghai
Features of Shear Stud with Ceramic Ring:
The Shear Stud with Ceramic Ring combines strength, durability, and functional protection. Its main features include:
- High Shear Load Capacity: Able to handle significant horizontal forces.
- Electrical Insulation: The Ceramic ring prevents unwanted current conduction in sensitive equipment.
- Heat Resistance: Withstands high-temperature conditions without compromising integrity.
- Wear and Vibration Protection: Ceramic layer reduces friction and absorbs vibration in dynamic applications.
- Customizable Design: Stud length, diameter, and ceramic ring dimensions can be tailored for specific requirements.
These features make it a reliable choice for industrial, automotive, and electronic applications.
Advantages of Shear Stud with Ceramic Ring:
Using a Shear Stud with a Ceramic Ring provides several practical advantages:
- Reliable Mechanical Performance: Maintains secure shear connections in critical structures.
- Enhanced Safety: Insulation and heat resistance reduce risk in sensitive environments.
- Extended Lifespan: Wear-resistant ceramic ring minimizes damage and extends service life.
- Versatile Application: Suitable for steel structures, machinery, electronics, and high-temperature systems.
- Ease of Installation: Can be welded or mechanically fixed, depending on project needs.
These advantages highlight why the shear stud is preferred in applications that require both strength and protection.
Applications of Shear Stud with Ceramic Ring:
The Shear Stud with Ceramic Ring is widely applied across different industries. Typical uses include:
- Steel Structures and Buildings: Provides shear strength and optional insulation or thermal protection.
- High-Temperature Equipment: Ideal for furnaces, boilers, and heat treatment machinery.
- Electronic and Electrical Devices: Offers secure mounting with electrical isolation.
- Automotive and Mechanical Equipment: Supports panels, brackets, and moving components while absorbing vibration.
- Industrial Machinery: Ensures stable fastening in equipment exposed to shear stress or high operational loads.
These applications demonstrate the versatility and reliability of this specialized fastener.
Why Choose Xinchi Fastener Factory?
When it comes to producing high-quality fasteners, Xinchi Fastener Factory stands out for its professional expertise and comprehensive capabilities. Our advantages include:
- Professional Manufacturing Expertise: Specializes in shear studs, T nuts, rivet nuts, cage nuts, and customized hardware.
- Large-Scale Production Capacity: Over 100 cold-heading machines with a daily output exceeding 10 million pieces.
- Reliable Material Sourcing: High-quality carbon steel, alloy steel, and stainless steel, combined with trusted heat-treatment and surface-treatment partners.
- Strict Quality Control: Full-process inspections ensure dimensional accuracy, strength, and consistency.
- Custom OEM/ODM Services: Supports tailor-made sizes, threads, structures, and finishes to meet diverse industrial requirements.
With Xinchi’s professional capabilities, customers can rely on consistent quality, timely delivery, and flexible solutions for Shear Stud with Ceramic Ring and other industrial fasteners.
