How to Use a Carriage Bolt

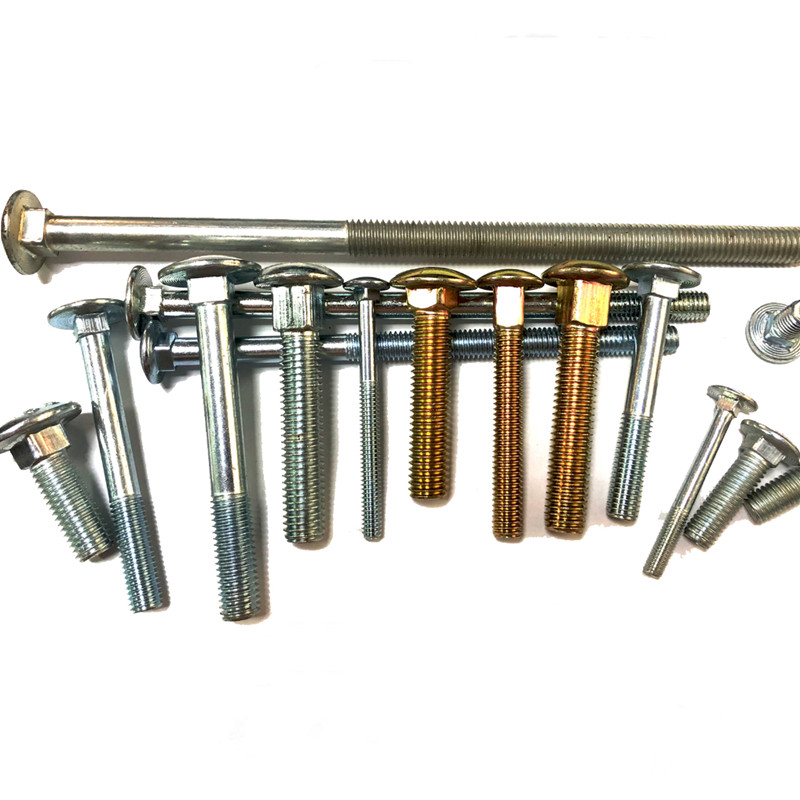

Carriage bolts are a unique type of fastener that are commonly used in various woodworking and construction projects. They have a smooth, rounded head and a square neck that helps prevent the bolt from turning when tightened. If you’re new to using carriage bolts or need a refresher, this guide will explain how to use a carriage bolt effectively.

Materials Needed for Using Carriage Bolts

Before you start, gather the following materials:

– Carriage bolts (of appropriate size for your project)

– Nuts (matching the size of your bolts)

– Washers (optional but recommended)

– Drill with the correct drill bit

– Wrench or socket set

– Hammer (optional, for tapping the bolt into place)

Step-by-Step Guide for Using Carriage Bolts

As a professional fastener supplier, XINCHI has an ISO9001-accredited factory, and we are glad to share a step-by-step guide to installing a carriage bolt.

1. Choose the Right Size

First, select the appropriate size of carriage bolt for your project. Consider the thickness of the material you are fastening and the load it will bear. Carriage bolts come in various lengths and diameters, so ensure you have the right one for your needs.

2. Prepare Your Materials

If you are working with wood, drill a hole where you want to insert the carriage bolt. The hole should be slightly larger than the diameter of the bolt to allow for easy insertion. If you are working with metal, ensure that the material is pre-drilled to accommodate the bolt.

3. Insert the Carriage Bolt

Insert the carriage bolt through the hole. The square neck of the bolt should sit in the hole, preventing it from spinning as you tighten the nut. If the hole is too tight, you may need to use a hammer gently to tap it into place.

4. Add Washers (Optional)

If you are using washers, place one washer on the bolt opposite the head before adding the nut. Washers help distribute the load and protect the material from damage.

5. Attach the Nut

Screw the nut onto the end of the carriage bolt. Make sure it threads on smoothly; if it doesn’t, check for cross-threading. Hand-tighten the nut until it is snug against the material.

6. Tighten the Nut

Using a wrench or socket set, tighten the nut further. Be careful not to overtighten, as this can strip the threads or damage the material you are fastening. If you are working with wood, avoiding excessive force is especially important.

7. Check for Stability

After tightening, check the stability of your connection. The carriage bolt should be secure, and the materials should not move or shift. If necessary, make adjustments to ensure a tight fit.

Tips for Using Carriage Bolts

Use a lubricant: If you find the nut difficult to turn, consider using a lubricant to ease the process.

Consider the load: For heavy-duty applications, choose bolts that can handle the weight and stress.

Inspect regularly: If used in a high-stress environment, periodically check the bolts to ensure they remain secure.

Using a carriage bolt is a straightforward process that can significantly enhance the durability and strength of your projects. By following these steps and tips, you can ensure that your connections are secure and reliable. Whether you’re building furniture, constructing a deck, or working on a DIY project, understanding how to use a carriage bolt will make your work easier and more effective.
