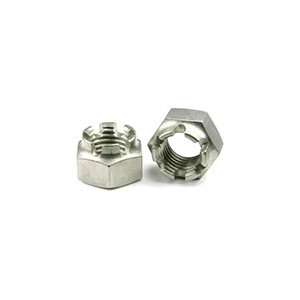

How To Use Castle Nuts?

In the previous article, Xinchi Fastener Company introduced What Are Castle Nuts, and today we will continue to introduce how to use castle nuts. They are designed to secure threaded fasteners like bolts, screws, or studs while allowing for the insertion of a cotter pin or split pin to prevent the nut from loosening due to vibration or other factors. Here’s how to use castle nuts:

Tools and Materials for using castle nuts:

Castle nut;

Bolt, screw, or stud with the appropriate threads;

Cotter pin or split pin;

Wrench or socket wrench (for tightening).

The procedure of using castle nuts:

Choose the Correct Nut: Ensure that you have the right size and thread pitch of the castle nut for the corresponding bolt, screw, or stud. The castle nut should match the diameter and thread count of the fastener.

Thread the Nut: Slide the castle nut onto the threaded end of the bolt, screw, or stud. Make sure it goes on straight and threads onto the fastener easily.

Tighten the Nut: Use a wrench or socket wrench to tighten the castle nut onto the fastener. The amount of torque applied should be in accordance with the specific requirements of your application. Refer to the manufacturer’s specifications or engineering guidelines for the appropriate torque value.

Align the Slots: Once the nut is properly tightened, check that the slots (or castellations) in the nut align with the hole in the fastener or the hole in the mating part.

Insert Cotter Pin or Split Pin: Insert a cotter pin or split pin through the aligned slots in the castle nut and the hole in the fastener or the mating part. The cotter pin or split pin should go through both the nut and the hole, preventing the nut from rotating and loosening.

Bend the Ends of the Pin: Once the cotter pin or split pin is in place, bend the ends of the pin over the nut. This will lock the pin in place and further secure the castle nut.

Ensure Proper Installation: Double-check that the cotter pin or split pin is securely fastened and that the castle nut cannot rotate freely. The castle nut should be snug against the fastener or mating part, and the pin should prevent it from loosening.

Castle nuts are commonly used in applications where it’s essential to prevent vibration or other forces from causing the nut to loosen over time. They are frequently used in automotive applications, machinery, and various mechanical assemblies. Always follow the manufacturer’s recommendations and engineering specifications for proper installation and torque values to ensure safety and reliability.
