What To Do When The Fastener Loose Thread?
In the previous article Example To Solve The Problem Of Loose Thread When Changing Oil Bolts, we introduced the main causes of slippage of oil pan drain bolts and several common factors that lead to loose thread. So, what should we do if we encounter the situation that the oil pan drain bolts loose thread?
After encountering this situation, many people will replace the oil pan according to the instructions of the 4S shop or repair shop, but the maintenance cost is extremely high. In fact, if we repair the thread, we can also reach the factory process level.

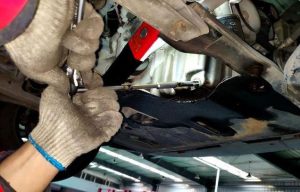

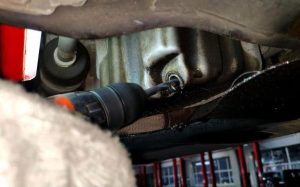

Step 1: Use an electric drill to enlarge the original hole
Since the original thread is no longer usable, we use an electric drill to enlarge the original hole. The main reason for this is to make the larger tap easier to screw into the screw hole.
Before repairing the thread, we need to enlarge the original hole so that it is easier to rotate the tap inward.

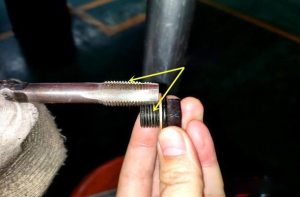

Step 2: Choose a tap one size larger than the original bolt
The damaged thread can no longer grow, so expanding the bolt hole is the correct way. In the choice of tap, we need to choose a tap larger than the original bolt. This is very critical. Because too large a tap is not easy to repair, too small will not help.
A tap with a diameter of M10 is rotated to the inside of the screw hole to create a new threaded groove for the new bolt.
Step 3: Follow the principle of “twist half a circle, back a circle”
- Before screwing in, apply sufficient oil to the tap for lubrication.
- Each rotation is to push half a circle, and then rotate back one circle.
- One more turn to the left and right. The main purpose of this is to make the new thread groove that has been opened up smoother. This is also not easy to make the tap head hot.
When rotating the tap, it is necessary to follow the method of “twist half a circle, withdraw a circle, and make a circle left and right”, and it cannot be rotated inward by brute force.
Note: When selecting the tap, we must choose the same model as the new bolt thread. If the screw type is different, you spend a lot of effort, the bolt still can not be screwed in.

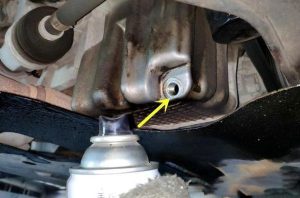

Step 4: Clean the threaded holes thoroughly
The tap should be all screwed in until there is no resistance to screw in and out. Due to the large number of iron filings generated during the whole process, it is necessary to use a cleaning agent to clean the threaded holes.

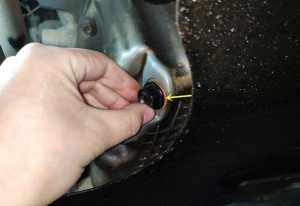

Step 5: Don’t forget to add washers!
In order to avoid oil leakage in the new bolt, a copper or plastic gasket should be matched when installing the new bolt as a seal.
Finally, warm tips: if the oil drain bolt slips, the replacement of the oil pan can effectively solve the problem, but the high maintenance cost is inevitable. Through this small method shared above, the problem of oil drain bolt slip can be effectively restored, and the maintenance cost is very low.
