Flat Head Full Hex Body Steel Nuts
Flat head full hex body steel nuts can completely prevent skidding because of their hexagon shape and can withstand greater torque.
Product Description

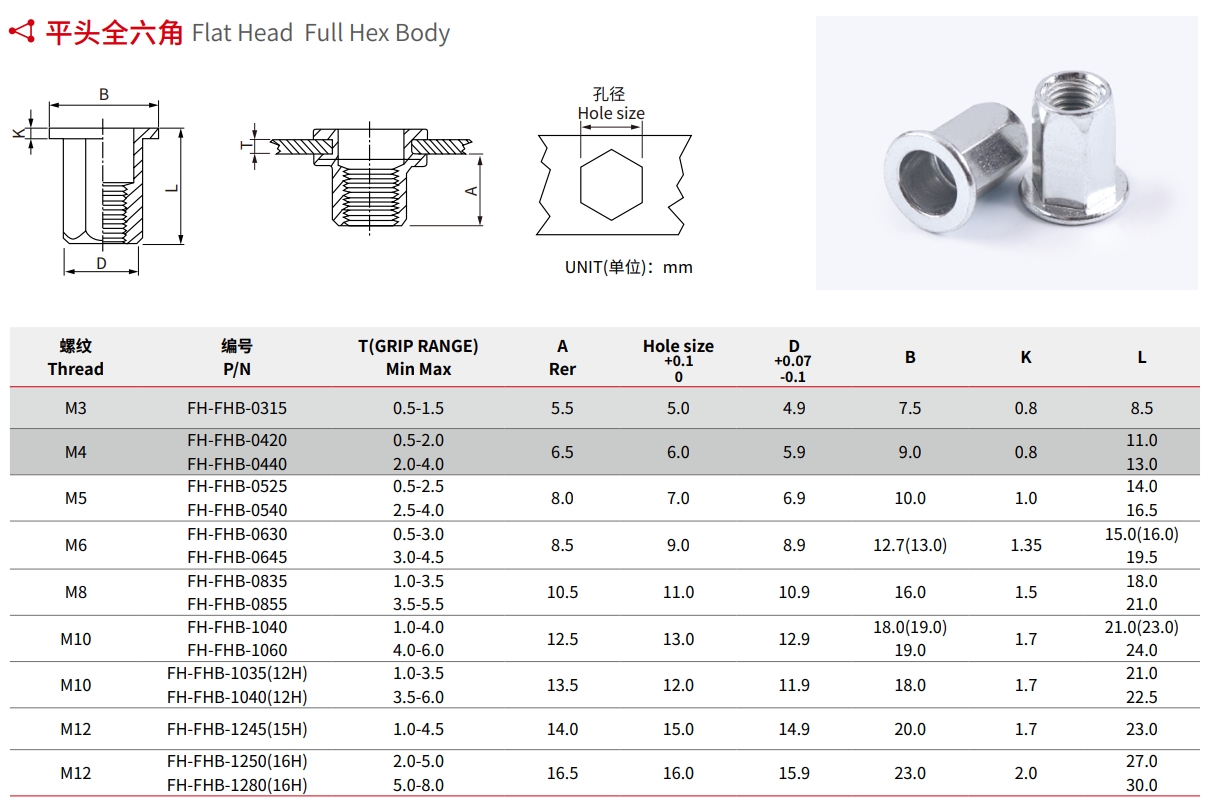

Specification of Flat Head Full Hex Body Rivet Nuts:
F=Flat/F=Full hex/S=Steel/B=Blind Unit: mm
| Thread | P/N | T(GRIP RANGE) MIN MAX | A
Ref |
Hole Size +0.1
0 |
HD +0.07 -0.1 | B
+0.50 |
K
+0.30 |
L
±0.30 |
| M4 | FFS-04MF-30 | 0.5-3.0 | 7.8 | 6.0 | 5.9 | 9.0 | 1 | 12.5 |
| M5 | FFS-05MF-30 | 0.5-3.0 | 8.8 | 7.0 | 6.9 | 10.0 | 1 | 14.5 |
| M6 | FFS-06MF-30 | 0.5-3.0 | 9.8 | 9.0 | 8.9 | 12.0 | 1.5 | 17.0 |
| M8 | FFS-08MF-30 | 1.0-3.0 | 10.5 | 11.0 | 10.9 | 15.5 | 1.5 | 19.0 |
| M10 | FFS-10MF-40 | 1.0-4.0 | 15.5 | 13.0 | 12.9 | 16.0 | 2.1 | 24.0 |
| M12 | FFS-12MF-50 | 2.0-5.0 | 16.5 | 16.0 | 15.9 | 23.0 | 2 | 27.0 |
Payment Terms: L/C, T/T
Packaging & Shipping
- Packaging: Plastic woven bag, plastic box, carton or according to customer requirements
- Shipping: Container shipping
- Port of Loading: Ningbo/Shanghai
Structure of Flat Head Full Hex Body Rivet Nuts:
Flat Head Full Hex Body Steel Nuts are characterized by their unique shape and construction. The “flat head” refers to the flat top surface of the nut, which allows for a flush fit against the surface of the material to which it is being fastened. The “full hex body” indicates that the nut has six sides, allowing easy gripping and turning with standard tools such as wrenches or pliers.
These nuts are typically made from high-quality steel, which provides strength and durability. The steel construction ensures that they can withstand high levels of stress and tension, making them suitable for heavy-duty applications.
Application of Flat Head Full Hex Body Rivet Nuts:
Flat Head Full Hex Body Steel Nuts are widely used in various sectors, including:
- Construction: These nuts are often used in structural applications, securing beams, columns, and other load-bearing elements.
- Automotive: In the automotive industry, they are used to assemble different car components, ensuring that parts remain securely attached even under vibration and movement.
- Machinery: They play a critical role in machinery assembly, holding components together in equipment that requires precision and reliability.
- Furniture: In the furniture industry, these nuts are used to provide stability and strength to assembled pieces.
Advantages of Flat Head Full Hex Body Rivet Nuts:
- Strength and Durability: The steel construction of these nuts provides exceptional strength, making them suitable for high-stress applications.
- Ease of Use: The flat head design allows for easy installation and removal, while the hex shape offers a secure grip for tools.
- Versatility: Flat Head Full Hex Body Steel Nuts can be used in a variety of applications across different industries, making them a versatile choice for builders and manufacturers.
- Corrosion Resistance: Many manufacturers offer these nuts with coatings or treatments that enhance their resistance to rust and corrosion, prolonging their lifespan.
