Flat Head Knurled Body Steel Nut
The flat head knurled rivet nut is easy to insert into the workpiece due to its unique design. As a professional rivet supplier, xinchi can provide high-quality flat head knurled body steel nuts. Our knurled rivet nuts are safe, durable, anti-rotation, and easy to install and use.
Product Description

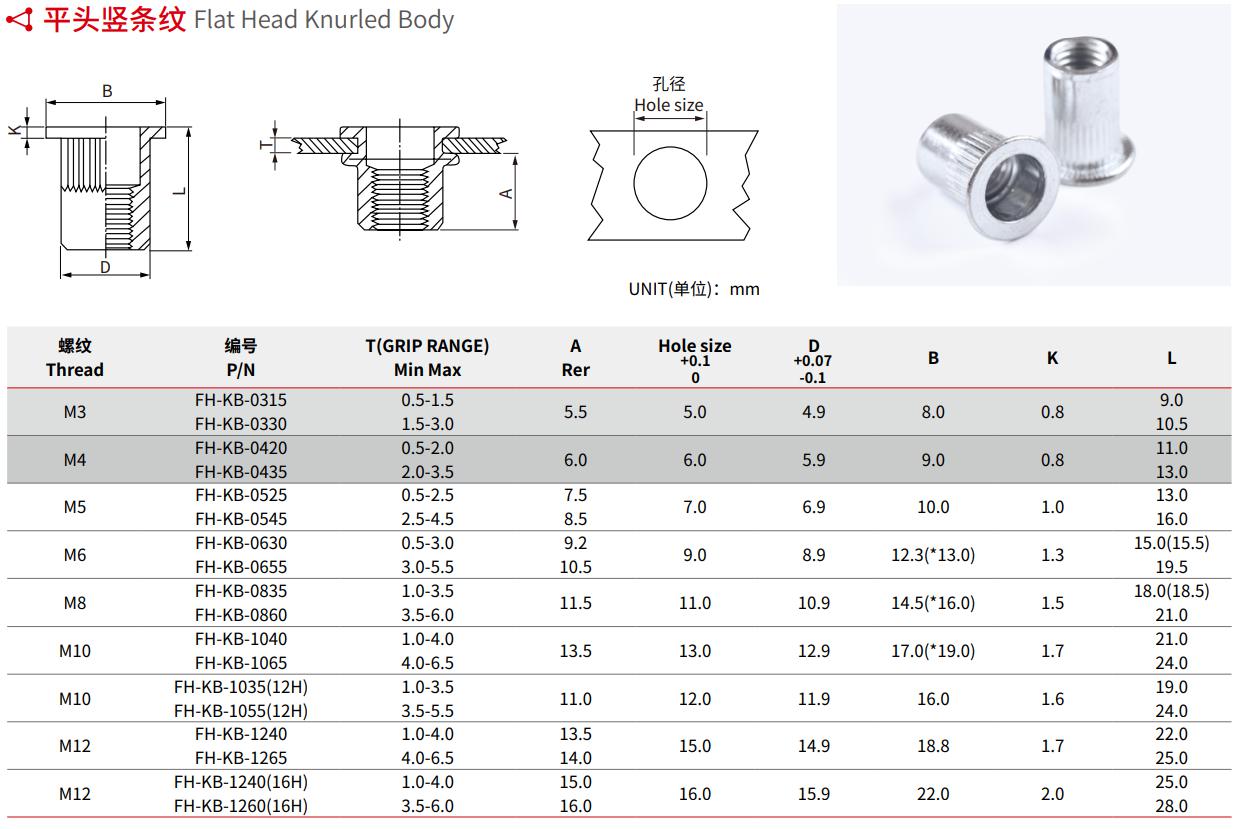

Flat Head Knurled Body Steel Nut
| UNIT: mm | F=Flat/K=Kunrked/S=Steel/B=Blind | |||||||||
| Thread | P/N | T(GRIP RANGE) MIN MAX | A
Ref |
Hole Size +0.10 | D
+0.07 -0.1 |
B
±0.30 |
K
±0.15 |
L
±0.30 |
（CLOSE END） | |
| A1 | L1 | |||||||||
| M3 | FKS-03M-20 | 0.5-2.0 | 6.0 | 5.0 | 4.9 | 8.0 | 0.8 | 10.0 | ||
| M4 | FKS-04M-20 | 0.5-2.0 | 6.0 | 6.0 | 5.9 | 9.0 | 0.8 | 10.5 | 12.5 | 16.0 |
| FKS-04M-35 | 2.0-3.5 | 12 | 18.0 | |||||||
| M5 | FKS-05M-30 | 0.5-3.0 | 8.0 | 7.0 | 6.9 | 10.0 | 1.0 | 13.0 | 11.5 | 17.0 |
| FKS-05M-50 | 3.0-5.0 | 9.5 | 16.5 | 19.0 | ||||||
| M6 | FKS-06M-30 | 0.5-3.0 | 9.5 | 9.0 | 8.9 | 12.3 | 1.3 | 15.5 | 13.5 | 19.2 |
| FKS-06M-55 | 3.0-5.5 | 10.5 | 13.0 | 19.5 | 21.0 | |||||
| M8 | FKS-08M-35 | 1.0-3.5 | 11.5 | 11.0 | 10.9 | 14.5 | 1.5 | 18.5 | 15.0 | 21.5 |
| FKS-08M-60 | 3.5-6.0 | 16.0 | 21.0 | 24.0 | ||||||
| M10 | FKS-10M-40 | 1.0-4.0 | 14.0 | 13.0 | 12..9 | 17.0 | 1.7 | 21.5 | 19.2 | 27.0 |
| FKS-10M-65 | 4.0-6.5 | 19.0 | 24.0 | |||||||
| FKS-10M-35(12H) | 1.0-3.5 | 11.0 | 12.0 | 11.9 | 16.0 | 1.6 | 19.0 | |||
| M12 | FKS-12M-40 | 1.0-4.0 | 13.8 | 15.0 | 14.9 | 18.0 | 1.7 | 22.0 | ||
| FKS-12M-65 | 4.0-6.5 | 14.0 | 25.0 | |||||||
| FKS-12M-40(16H) | 1.0-4.0 | 15.3 | 16.0 | 15.9 | 22.0 | 2.0 | 25.0 | |||
| FKS-12M-60(16H) | 3.5-6.0 | 17.3 | 28.0 | |||||||
Payment Terms:L/C,T/T
Packaging & Shipping
- Packaging: Plastic woven bag, plastic box, carton or according to customer requirements
- Shipping: Container shipping
- Port of Loading: Ningbo/Shanghai
