Reduced Head Knurled Body Closed End Rivet Nuts
Reduced Head Knurled Body Closed End Rivet Nuts are specialized fasteners that play a crucial role in various engineering and manufacturing applications. These rivet nuts are designed to create a strong and secure threaded connection in materials where traditional fastening methods may be ineffective.
Product Description

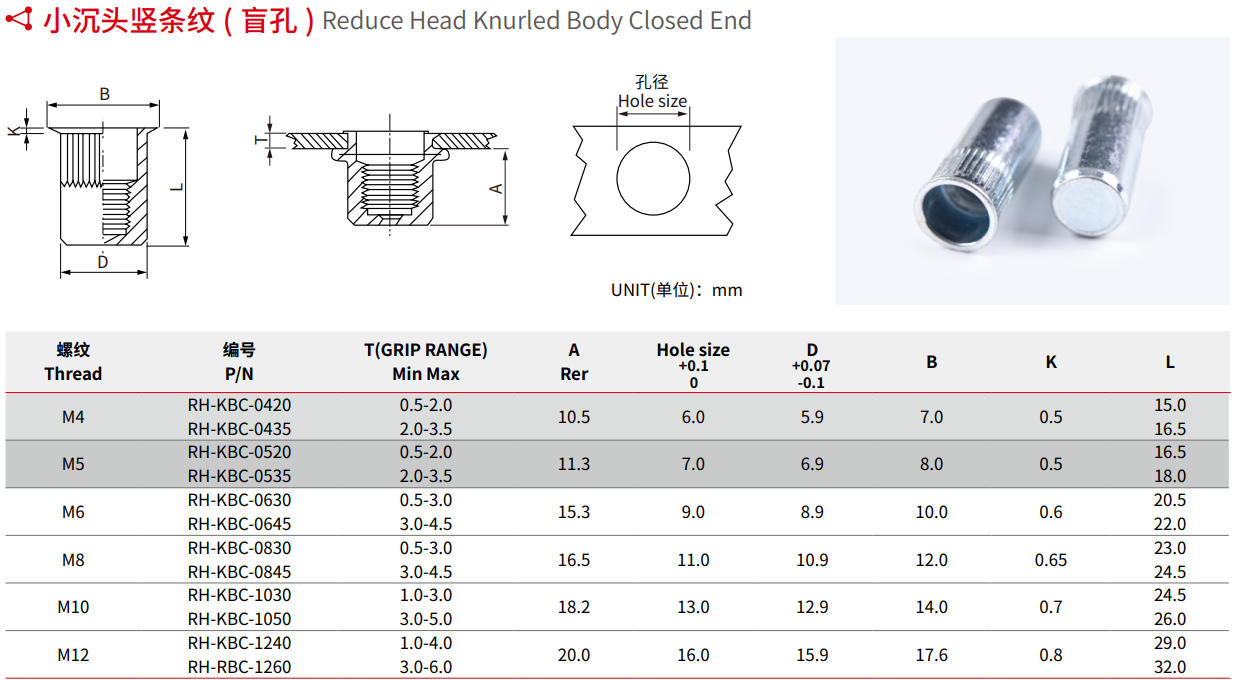

Specification of Reduced Head Knurled Body Closed End Rivet Nuts:
| UNIT: mm | |||||||
| Thread | T(GRIP RANGE) MIN MAX |
A Ref |
Hole Size +0.10 | D +0.07 -0.1 |
B | K | L |
| M4 | 0.5-2.0 | 10.5 | 6.0 | 5.9 | 7.0 | 0.5 | 15.0 |
| 2.0-3.5 | 16.5 | ||||||
| M5 | 0.5-2.0 | 11.3 | 7.0 | 6.9 | 8.0 | 0.5 | 16.0 |
| 2.0-3.5 | 18.0 | ||||||
| M6 | 0.5-3.0 | 15.3 | 9.0 | 8.9 | 10.0 | 0.6 | 20.5 |
| 3.0-4.5 | 20.5 | ||||||
| M8 | 0.5-3.0 | 16.5 | 11.0 | 10.9 | 12.0 | 0.65 | 23.0 |
| 3.0-4.5 | 24.5 | ||||||
| M10 | 1.0-3.0 | 18.2 | 13.0 | 12.9 | 14.0 | 0.7 | 24.5 |
| 3.9-5.0 | 26.0 | ||||||
| M12 | 1.0-4.0 | 20 | 16.0 | 15.9 | 17.6 | 0.75 | 29.0 |
| 3.0-6.0 | 0.8 | 32.0 | |||||
Payment Terms: L/C, T/T
Packaging & Shipping
- Packaging: Plastic woven bag, plastic box, carton or according to customer requirements
- Shipping: Container shipping
- Port of Loading: Ningbo/Shanghai
Features of Reduced Head Knurled Body Closed-End Rivet Nuts:
- Reduced Head Design: The reduced head design allows for a lower profile, making these rivet nuts ideal for applications where space is limited. This feature helps in achieving a cleaner and more streamlined appearance in assembled products.
- Knurled Body: The knurled body of the rivet nut provides enhanced grip and resistance to rotation during installation. This feature ensures that the rivet nut remains firmly in place, even under high-stress conditions.
- Closed-End: The closed-end design prevents the entry of contaminants and moisture, making these rivet nuts suitable for outdoor and harsh environments. This characteristic enhances the durability and longevity of the fastener.
- Material Options: Reduced Head Knurled Body Closed End Rivet Nuts are available in various materials, including aluminum, steel, and stainless steel. This variety allows for selection based on specific application requirements, such as weight, strength, and corrosion resistance.
Application of Reduced Head Knurled Body Closed End Rivet Nuts:
Reduced Head Knurled Body Closed End Rivet Nuts are utilized in numerous applications, including:
- Automotive Industry: Used in vehicle assembly to secure panels and components without the need for welding.
- Aerospace: Ideal for lightweight structures where maintaining a low profile is essential.
- Electronics: Employed in the assembly of electronic enclosures and components, providing secure fastening without adding significant weight.
- Furniture Manufacturing: Used to assemble furniture pieces, allowing for easy disassembly and reassembly when needed.
Advantages of Reduced Head Knurled Body Closed End Rivet Nuts:
- Ease of Installation: These rivet nuts can be easily installed using a simple tool, making them a user-friendly option for both professionals and DIY enthusiasts. The installation process is quick and does not require special skills.
- Strong Load-Bearing Capacity: The design of Reduced Head Knurled Body Closed End Rivet Nuts provides excellent load-bearing capacity, making them suitable for heavy-duty applications. They can securely hold components together, ensuring structural integrity.
- Versatility: These rivet nuts can be used in a wide range of materials, including plastics, thin metals, and composites. This versatility makes them a popular choice in various industries, from automotive to aerospace.
- Cost-Effective Solution: Compared to traditional welding or machining methods, using rivet nuts can significantly reduce manufacturing costs and time. This cost-effectiveness makes them an attractive option for manufacturers looking to optimize their production processes.
