How to Weld DIN 929 Hex Weld Nuts Properly
DIN 929 hex weld nuts are widely used in automotive parts, machinery, and metal fabrication because they provide a strong threaded connection without requiring access to the back side of the workpiece.
Compared with regular nuts, DIN 929 hex weld nuts are designed with welding projections that allow them to be permanently attached to metal surfaces. However, proper welding is important to ensure strong bonding and protect the internal thread from damage. As a professional weld nut manufacturer, Xinchi Fastener Factory shares how to weld DIN 929 hex weld nuts properly.

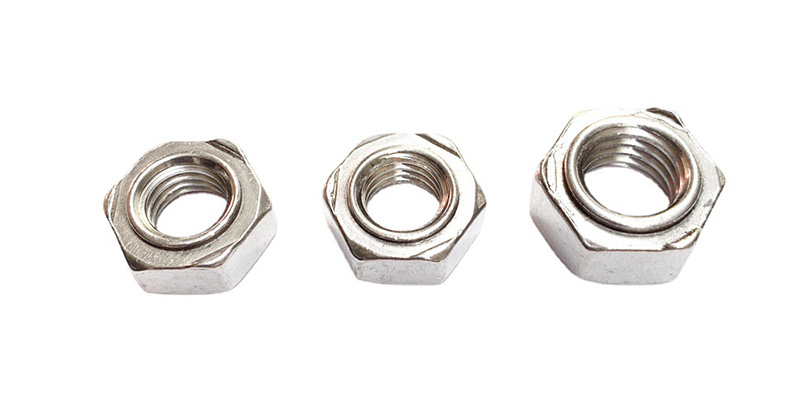

DIN 929 Hex Weld Nut
DIN 929 Hex Weld Nut Preparation Before Welding
Before welding a DIN 929 hex weld nut, the surface condition of both the nut and the base material should be checked carefully.
The welding area should be clean and free from oil, rust, paint, or other contaminants. A flat and clean surface helps the welding projections make better contact and improves the welding strength.
Choosing the correct DIN 929 hex weld nut size and material according to the application is also important. The nut should match the thickness and material of the workpiece to achieve a reliable connection.

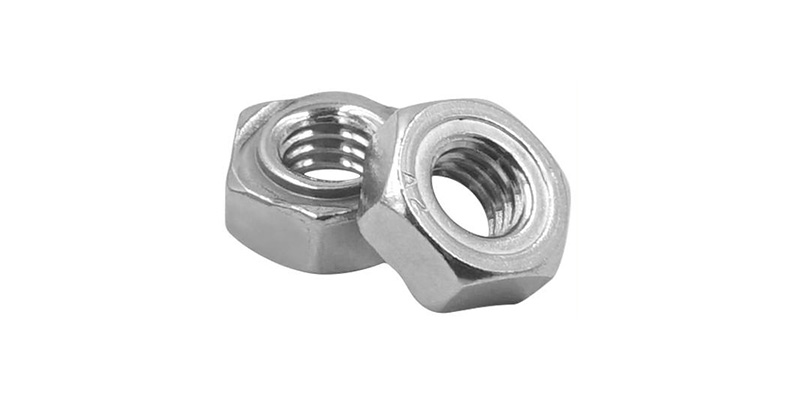

DIN 929 Hex Weld Nut
DIN 929 Hex Weld Nut Positioning Process
Proper positioning is necessary to ensure accurate assembly after welding.
Place the DIN 929 hex weld nut at the required location and make sure the threaded hole is aligned correctly. In mass production, welding fixtures are often used to keep the nuts in a fixed position and improve production efficiency.
Incorrect positioning may cause problems during later bolt installation, so alignment should be checked before welding.

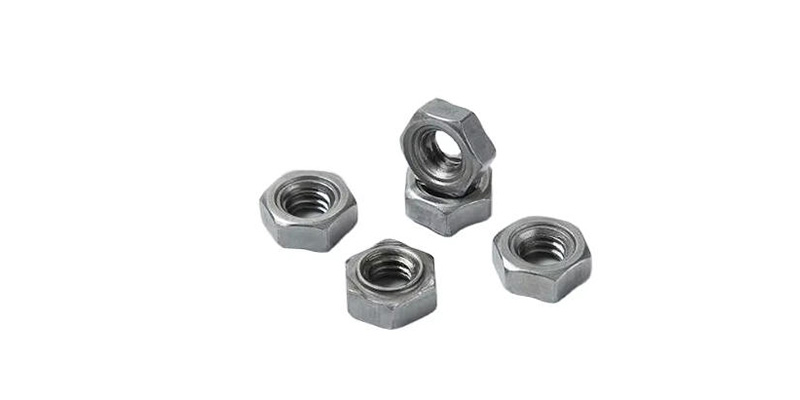

DIN 929 Hex Weld Nut
DIN 929 Hex Weld Nut Welding Steps
The welding method for DIN 929 hex weld nuts depends on the production requirements. Resistance welding is commonly used because it provides fast and consistent results for large-volume applications.
The basic welding steps are:
- Place the DIN 929 hex weld nut on the prepared metal surface.
- Apply suitable pressure and welding current to create a strong connection between the nut and the workpiece.
- Allow the welded area to cool and check the welding quality.
During the process, welding parameters should be properly controlled. Excessive heat may damage the internal thread of the DIN 929 hex weld nut and affect bolt installation.

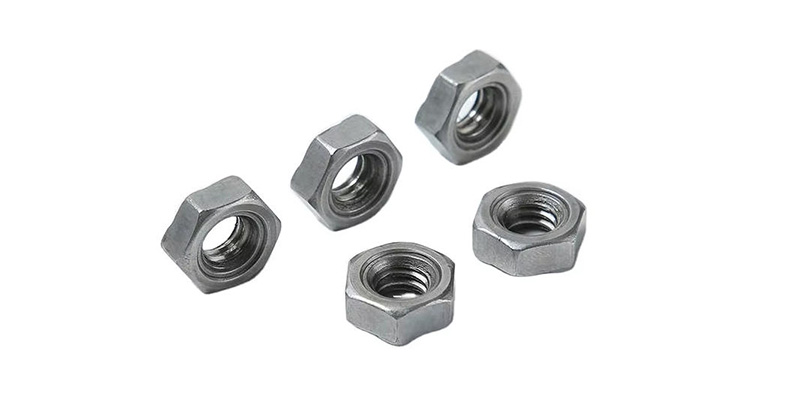

DIN 929 Hex Weld Nut
DIN 929 Hex Weld Nut Quality Inspection
After welding, the connection should be inspected to ensure the DIN 929 hex weld nut is securely attached.
Common inspection methods include checking the welding appearance, testing the holding strength, and confirming that bolts can be installed smoothly.
A high-quality welded connection should have stable strength without cracks, deformation, or thread damage.

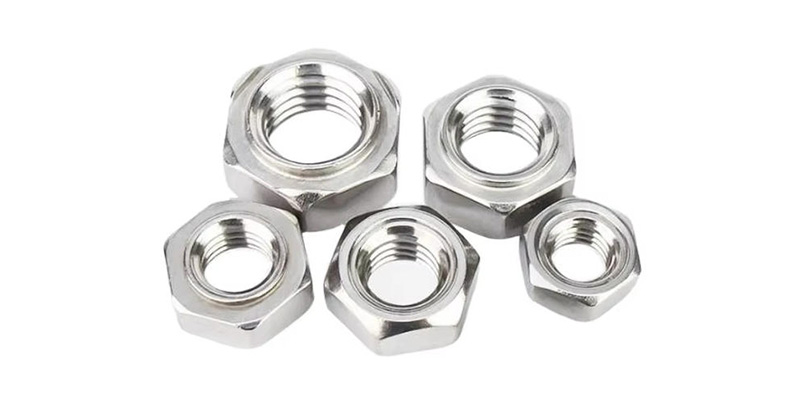

DIN 929 Hex Weld Nut
Common Welding Problems of DIN 929 Hex Weld Nuts
Although DIN 929 hex weld nuts are designed for welding applications, incorrect welding conditions may still cause issues.
Common problems include low weld strength, nut misalignment, and thread damage from excessive heat. Proper surface preparation and suitable welding settings can help reduce these problems.
Selecting reliable DIN 929 hex weld nuts from an experienced manufacturer is also important for consistent welding performance.

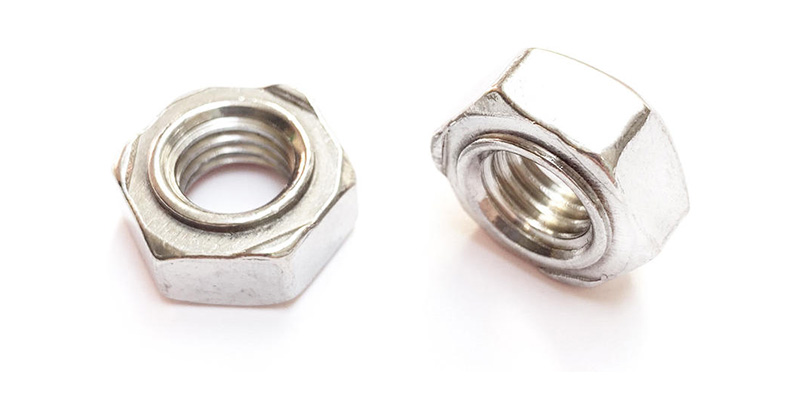

DIN 929 Hex Weld Nut
