Flat Head Semi-Hex Body Rivet Nuts
Flathead semi-hex body rivet nuts, often referred to simply as rivet nuts or threaded inserts, are specialized fasteners designed to provide a strong, reliable threaded connection in thin materials. These unique components are widely used in various industries, including automotive, aerospace, and manufacturing, due to their ability to create secure joints without the need for extensive machining or welding.
Product Description

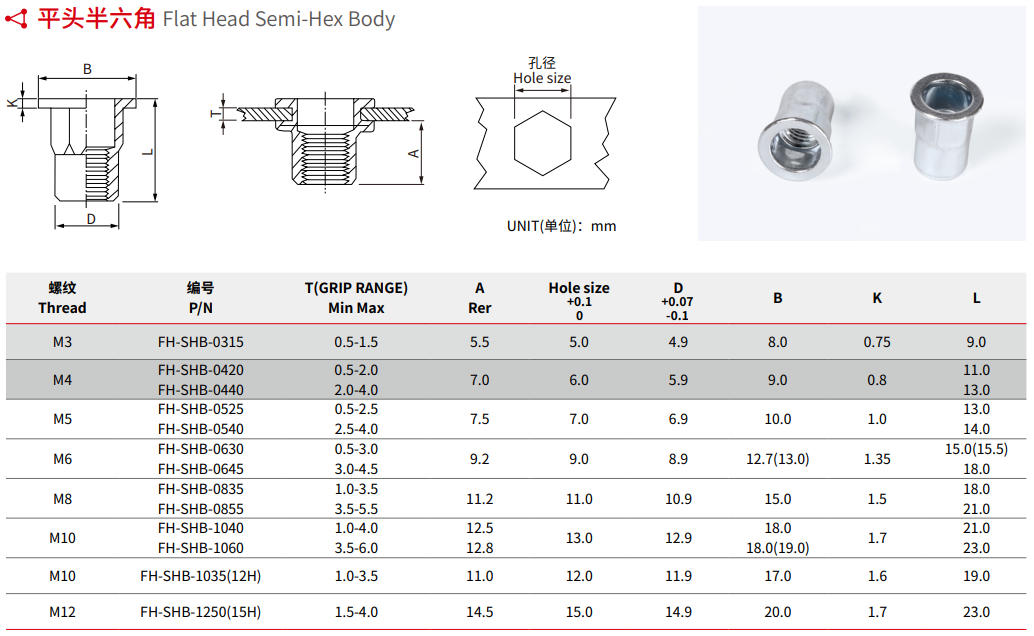

Specification of Flat Head Semi-Hex Body Rivet Nuts:
| UNIT: mm | |||||||
| Thread | T(GRIP RANGE) MIN MAX |
A Ref |
Hole Size +0.10 | D +0.07 -0.1 |
B | K | L |
| M3 | 0.5-1.5 | 5.5 | 5.0 | 4.9 | 8.0 | 0.75 | 9.0 |
| M4 | 0.5-2.0 | 7.0 | 6.0 | 5.9 | 9.0 | 0.8 | 11.0 |
| 2.0-4.0 | 13.0 | ||||||
| M5 | 0.5-2.5 | 7.5 | 7.0 | 6.9 | 10.0 | 1 | 13.0 |
| 2.0-4.0 | 14.0 | ||||||
| M6 | 0.5-3.0 | 9.2 | 9.0 | 8.9 | 12.7（13.0） | 1.35 | 15.0（15.5） |
| 3.0-4.5 | 18.0 | ||||||
| M8 | 1.0-3.5 | 11.2 | 11.0 | 10.9 | 15.0 | 1.5 | 18.0 |
| 3.5-5.5 | 21.0 | ||||||
| M10 | 1.0-4.0 | 12.5 | 13.0 | 12.9 | 18.0 | 1.7 | 21.0 |
| 3.5-6.0 | 12.8 | 18.0（19.0） | 23.0 | ||||
| M10 | 1.0-3.5 | 12 | 12.0 | 11.9 | 17.0 | 1.6 | 19.0 |
| M12 | 1.5-4.0 | 15 | 15.0 | 14.9 | 20.0 | 1.7 | 23.0 |
Payment Terms: L/C, T/T
Packaging & Shipping
- Packaging: Plastic woven bag, plastic box, carton or according to customer requirements
- Shipping: Container shipping
- Port of Loading: Ningbo/Shanghai
Structure of Flat Head Semi-Hex Body Rivet Nuts:
The flat head semi-hex body rivet nut features a flat top surface, which allows it to sit flush against the material surface, providing a clean and streamlined appearance. The semi-hexagonal shape of the body enhances grip and resistance to rotation when installed, making it an ideal choice for applications where space is limited.
Typically made from materials such as steel, aluminum, or brass, these rivet nuts are designed to withstand significant loads and stresses. The internal threads allow for the attachment of bolts, screws, or other fasteners, enabling a versatile range of applications.
Application of Flat Head Semi-Hex Body Rivet Nuts:
Flat head semi-hex body rivet nuts are used in a wide variety of applications, including:
- Automotive Manufacturing: They are commonly used in car body assembly to attach panels and components securely.
- Aerospace: These rivet nuts provide lightweight yet robust fastening solutions in aircraft construction.
- Electronics: Electronics are used in electronic enclosures to secure components without compromising the integrity of the housing.
- Furniture: They are often found in modular furniture systems, allowing for easy assembly and disassembly.
Advantages of Flat Head Semi-Hex Body Rivet Nuts:
The advantages of flat-head semi-hex body rivet nuts include:
- Ease of Use: Their installation process is quick and does not require special skills.
- Strength: They provide a strong threaded connection that can withstand significant loads.
- Versatility: Suitable for various materials, including metals and plastics.
- Aesthetic Appeal: The flat head design offers a clean finish, making them ideal for visible applications.
